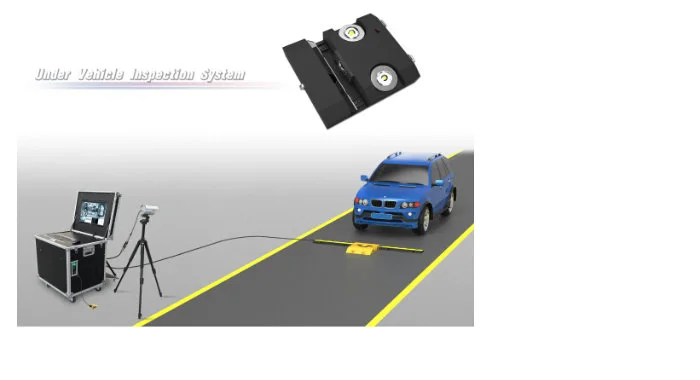

High-Resolution Under Vehicle Inspection System for Army, Embassy
1. Auto digital line scan, high-resolution undercarriage imaging.
2. High automation, easy to be used.
3. Applicable to variety of vehicles, wide vision.
4. Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.
5. Undercarriage image can be stored, retrieved, searched or compared with other images.
6. A variety of image processing methods: enlarge, stretching and cutting.
7. Multi entrance management model, management, and statistics of entering and exiting vehicles.
8. Flexible detection process can be made on site to satisfy the needs of various work conditions.
9. Option of automatic number plate recognition system available, associative storage of various vehicle information and undercarriage images.
10. Image monitoring, video recording for different scenario.
No need to park vehicle, can bear speed below 30km/h
Whole image display ion monitor
Operator can zoom and save image
Embedded Under Vehicle Imaging Equipment
1. Camera: Sensor: line scans CCD, Resolution: 2048, Power Supply: 24VDC, 5A
2. Illumination: LED, Power Supply: 24VDC, 150W
3. Size: 1200mm x 350mm
4. Operating Temperature Range: -40 degree to +70 degree
1. Input: 2 channel induction coil (can optional extend to 3 channel)
2. Output: 1 channel switch type 12VDC
3. Communication Port: RS422, RS232, Ethernet (Optional)
4. Operating Temperature Range: -10 degree to +55 degree
1. CPU: Intel Centurion Duo or higher, Memory: 2G, Hard Disk: 500G
2. Display: 22" LCD, can choose a vice display to show the image independently (optional)
3. Scene Video Record: 4 channel, Compression algorithm of scene video: H264
Contact us if you need more details on Under Vehicle Inspection System. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Under Vehicle Monitor System、Under Vehicle Surveillance System. If these products fail to match your need, please contact us and we would like to provide relevant information.
