Airport Door Frame Body Scanner Metal Detector, Walkthrough Metal Detector for Security
Product Description
Features
- This system equips with the conversion of warning lights .
- High strength thick door made of fireproof board , forming aluminum column structure , after antioxidant treatment , high hardness ,no deformation , not easy to scratch .
- Slant main chassis designed all-metal structure , patented large countersunk head bolts for doors, easy to assemble , the structure is more stable.
- The super brightness SMD double district alarm indicators , multi-angle display the hiding place of prohibited items.
- High-decibel alarm sound speakers,set the size of the alarm sound or be mute according to user's need.
- It can be connected to the Internet, through a single PC and special software ,it can manage multiple devices ,to meet the need of large-scale activities , events , and users who have to manage multiple devices at a time.
- It can link external devices such as : three roller gates, wing gates , access control, attendance, and the devices that need to control and register each other.
- With upgrade ports, we provide lifelong upgrade services, it can achieve the secondary development according to user's need.

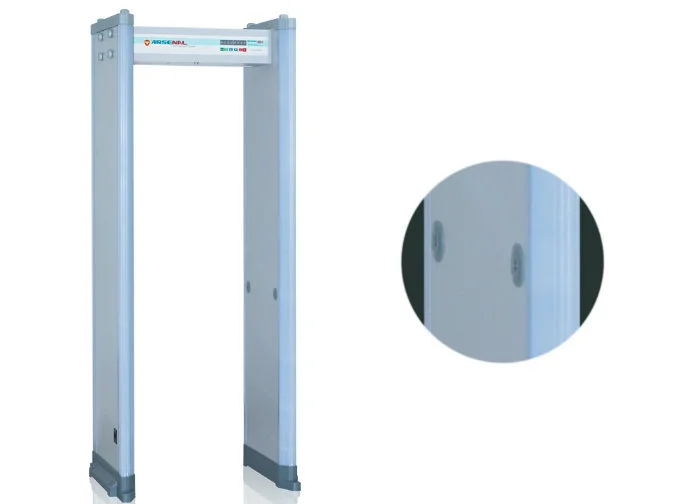

- The 3D multi-angle infrared design, can better prevent the interference of strong light, sunlight and other external light ( patented technology )
- The unique infrared start-stop technology, is better to meet customers' need.
- The warning lights conversion of each zones are managed separately .
Specification
Vertical dimension | 2200x620x850mm |
Vertical channel size | 2000x700mm |
Main box packing size | 755x435x255mm |
Detection door packing size | 2290x770x240mm |
Net weight of main box/detection door | 72kg |
Gross weight of main box/detection door | 81kg |
Working voltage | AC90V~250V 50/60Hz |
Power consumption | 30W |
Working frequency range | 1-100 bands |
Working environment temperature | -20ºC ~ 65ºC |
Installation environment | (W) 100cm* (L) 200cm (minimum range without metal) |
Application
Airports and Seaports,Government Buildings,Embassy,Police ,Court,Prisons and jails,Military Bases,Hospitals,Banks,Financial Institutions,Colleges and Schools,Hotels and Casinos,Power plants,Research Sites,Sports Stadiums,Public Transportation,Factories and Warehouses,Broadcast Studios,Museums,Night Clubs,Meetings and VIP Security,Gymnasium,Commercial buildings,Ships,Security checkpoints
