Human Body Walk Through Metal Detector Door Frame at Iiia High Sensitivity
Product Description
Our advantages
1.Brands cooperation,ODM,OEM
2.Sales of a complete set of technical solutions
3.Technical guidance and training for customers
4.Product design, technology development, parts processing and sales integration services
5.One of the world's top four brands, leading technology, quality first, service first-class
6.Our security eqipments have Advanced functions, beautiful appearance,adapt to market's need
Product features
Product detail
1.Brands cooperation,ODM,OEM
2.Sales of a complete set of technical solutions
3.Technical guidance and training for customers
4.Product design, technology development, parts processing and sales integration services
5.One of the world's top four brands, leading technology, quality first, service first-class
6.Our security eqipments have Advanced functions, beautiful appearance,adapt to market's need
Product features
- Simple and elegant front panel design, reasonable 4 keys management,marked in English and Chinese,easy to operate.
- Patented structural components, and windproof, moistureproof, dustproof design.
- High performance , high sensitivity , high stability,it can detect 2g ferrous metals (flaky landscape) accurately.
- Multi-probe , multi-zone, multi- launch and reception , interactive detection technology .
- Set each zone's sensitivity freely,and it can effectively exclude their own keys, belt buckles, bra, mobile phones and other metal objects.
- High strength thick door made of fireproof board , forming aluminum column structure , after antioxidant treatment , high hardness ,no deformation , not easy to scratch .

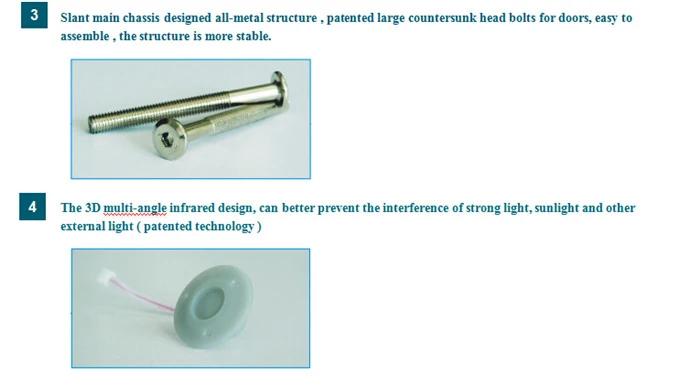

- Slant main chassis designed all-metal structure , patented large countersunk head bolts for doors, easy to assemble , the structure is more stable.

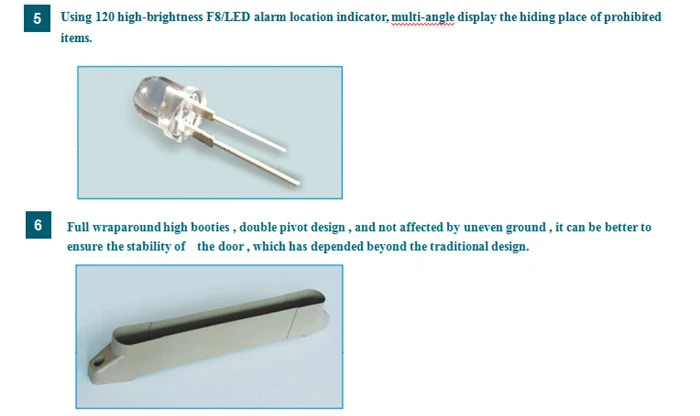

- Using 120 high-brightness F8/LED alarm location indicator, multi-angle display the hiding place of prohibited items.
- High-decibel alarm sound speakers,set the size of the alarm sound or be mute according to user's need.
- It can be connected to the Internet, through a single PC and special software ,it can manage multiple devices ,to meet the need of large-scale activities , events , and users who have to manage multiple devices at a time.
- Able to link external devices such as : three roller gates, wing gates , access control, attendance, and the devices that need to control and register each other.
- With upgrade ports, we provide lifelong upgrade services, it can be achieved the secondary development according to user's need.
- The 3D multi-angle infrared design, can better prevent the interference of strong light, sunlight and other external light ( patented technology )
- The unique infrared start-stop technology, is better to meet customers' need.
- Full wraparound high booties , double pivot design , and not affected by uneven ground , it can be better to ensure the stability of the door , which has depended beyond the traditional design.
- System with password management techniques.
Specification
| Model Number | ARSENAL-24 |
| Vertical dimension | 2220x690x850mm |
| Vertical channel size | 2000x700mm |
| Main box packing size | 755x435x255mm |
| Detection door packing size | 2290x635x210mm |
| Net weight of main box/detection door | 54.8kg |
| Gross weight of main box/detection door | 64kg |
| Working voltage | 90V~250V 50/60Hz |
| Power consumption | 20W |
| Working frequency range | 1-50 bands |
| Working environment temperature | -20ºC ~ 55ºC |
| Installation environment | (W) 100cm* (L) 200cm (minimum range without metal) |
Product detail
